Wood Pecker¶
Objective¶
Show how to use sympy.Piecewise(….) to set up equations of motion.
Description¶
A ring with rectangular crossection, inner radius \(r_i\) and outer radius \(r_o\) slides on a vertical peg with \(r_p < r_i\). It has mass \(m_R\) and central moment of inertia around the Z axis of \(i_{ZZR}\). A body, the woodpecker, of mass \(m_W\) and central moment of inertia around the Z axis of \(i_{ZZW}\) is attached to the ring via a torque spring of strength \(k_W\). The pivoting point P of the woodpecker is at distance \(r_o\) from the center of gravity of the ring, :math`Dmc_R`, the center of gravity of the woodpecker, \(Dmc_W\) is at a distance \(d_W\) from P.
The angle of rotation of the ring is \(q_R\). if the ring tilts more than an angle \(max_{kipp}\) it contacts the peg. Then a force \(F_t = k_t \cdot \Delta(max_{\textrm{kipp}}, q_R)\) effectively stops the ring from tilting much more. A strong friction force, \(F_f = -uy_R \cdot reibung \cdot F_t\) effectively stops the further sliding of the ring.
This link shows a video of what is simulated. https://github.com/Peter230655/Miscellaneous/blob/main/woodpecker.MOV
Parameters and Variables
\(N\): inertial frame
\(AR\): body fixed frame of the ring
\(AW\): body fixed frame of the woodpecker
\(O\): fixed point (origin of N)
\(P\): point on outer surface of the ring, where the woodpecker is attached to the ring
\(Dmc_R, Dmc_W\): centers of gravity of the ring and the woodpecker
\(m_R, m_W, i_{ZZR}, i_{ZZW}\): masses and moments of inertia of ring and woodpecker
\(q_R, q_W, u_R, u_W\): angles and angular speeds of AR, AW
\(x_R, y_R, ux_R, uy_R\): location and speed of \(Dmc_R\). \(Dmc_R\) can only move in Y direction, so \(x_R, ux_R \equiv 0\)
\(k_W\): constant of the torque spring connecting the woodpecker to the ring
\(k_R\): constant of the spring, with which the peg pushes against the ring upon impact.
\(\textrm{reibung}\): coefficient of friction between ring and peg upon contact.
\(r_o\): outer radius of the ring
\(d\): distance from P to \(Dmc_W\)
\(max_{\textrm{kipp}}\): tilting angle at which the ring touches the peg
\(\textrm{korrekt}\): put the ‘neutral location’ of the torque spring at \(\textrm{korrekt}\) radians w.r.t. AW. Set by trial and error to get the woodpecker to wiggle around AW.x
import sympy as sm
import sympy.physics.mechanics as me
import numpy as np
from scipy.integrate import solve_ivp
from matplotlib import animation
from matplotlib import patches
import matplotlib.pyplot as plt
Set up the System¶
N, AR, AW = sm.symbols('N, AR, AW', cls=me.ReferenceFrame)
O, DmcR, DmcW, P = sm.symbols('O, DmcR, DmcW, P', cls=me.Point)
t = me.dynamicsymbols._t
qR, uR, qW, uW = me.dynamicsymbols('qR, uR, qW, uW')
yR, uyR = me.dynamicsymbols('yR, uyR')
mR, mW, g, iZZR, iZZW, ro, d, max_kipp, kR, kW, reibung, korrekt = \
sm.symbols(('mR, mW, g, iZZR, iZZW, ro, d, max_kipp, kR, kW, reibung,'
'korrekt'))
O.set_vel(N, 0)
AR.orient_axis(N, qR, N.z)
AR.set_ang_vel(N, uR * N.z)
AW.orient_axis(AR, qW, AR.z)
rot = AW.ang_vel_in(N)
AW.set_ang_vel(AR, uW * AR.z)
rot1 = AW.ang_vel_in(N)
DmcR.set_pos(O, yR*N.y)
DmcR.set_vel(N, uyR*N.y)
P.set_pos(DmcR, ro*AR.x - ro/5.*AR.y)
P.v2pt_theory(DmcR, N, AR)
DmcW.set_pos(P, d*AW.x)
DmcW.v2pt_theory(P, N, AW)
iR = me.inertia(AR, 0., 0., iZZR)
iW = me.inertia(AW, 0., 0., iZZW)
Ring = me.RigidBody('Ring', DmcR, AR, mR, (iR, DmcR))
Woodpecker = me.RigidBody('Woodpecker', DmcW, AW, mW, (iW, DmcW))
BODY = [Ring, Woodpecker]
Set up the forces acting on the system.
# The torque needs to to effectively stop the ring from penetrating the peg,
# and a force to stop the sliding of the ring.
# They just have to be strong, this is why it should not matter whether they
# are set up mechanically correct.
# I return *eindring*, because I need it for the spring energy below.\
# I return hilfs to plot the forces.
#
# NOTE: sm.Piecewise((..), (..), .., (..)) returns the first conditon which is
# True from left to right. Therefore, the sequence is important.
def kraefte():
FG = [(DmcR, -mR*g*N.y), (DmcW, -mW*g*N.y)] # gravity
# torque if woodpecker is not 'in line' with the ring
FT1 = [(AW, -kW * (qW-korrekt) * N.z), (AR, kW * (qW-korrekt) * N.z)]
# When - max_kipp > qR or qR > max_kipp, the ring touches the peg
faktor1 = sm.Piecewise((1., -max_kipp > qR), (1., qR >= max_kipp),
(0., True))
# the 'penetration' is qR - max_kipp if qR > max_kipp, and -(qR + max_kipp)
# if qR < -max_kipp
eindring = sm.Piecewise((qR - max_kipp, qR > max_kipp),
(-qR - max_kipp, qR < -max_kipp), (0., True))
# This penetration will create a torque on AR. The direction of the torque
# is needed,
faktor2 = sm.Piecewise((-1., max_kipp < qR), (1., True))
kraft = kR * eindring * faktor1 * faktor2
FT2 = [(AR, kraft * N.z)]
# friction acting on DmcR to stop the sliding. It is speed dependent to
# avoid that the ring might be driven upward.
kraft2 = sm.Abs(kraft)
FR = [(DmcR, -uyR * reibung * kraft2 * N.y)]
FL = FG + FT1 + FT2 + FR
hilfs = [kraft, -uyR * reibung*kraft2]
return FL, eindring, hilfs
FL, eindring, krafte = kraefte()
Set up Kane’s equations
q_ind = [qR, qW, yR]
u_ind = [uR, uW, uyR]
kd = [i - j.diff(t) for i, j in zip(u_ind, q_ind)]
KM = me.KanesMethod(N, q_ind=q_ind, u_ind=u_ind, kd_eqs=kd)
fr, frstar = KM.kanes_equations(BODY, FL)
MM = KM.mass_matrix_full
force = KM.forcing_full
print('force DS', me.find_dynamicsymbols(force))
print('force free symbols', force.free_symbols)
print((f'force has {sm.count_ops(force)} operations, '
f'{sm.count_ops(sm.cse(force))} operations after cse', '\n'))
print('MM DS', me.find_dynamicsymbols(MM))
print('MM free symbols', MM.free_symbols)
print((f'MM has {sm.count_ops(MM)} operations, '
f'{sm.count_ops(sm.cse(MM))} operations after cse', '\n'))
force DS {uyR(t), qW(t), qR(t), uW(t), uR(t)}
force free symbols {korrekt, reibung, kR, g, t, mR, kW, ro, max_kipp, d, mW}
('force has 186 operations, 84 operations after cse', '\n')
MM DS {qR(t), qW(t)}
MM free symbols {iZZR, t, mR, ro, iZZW, d, mW}
('MM has 129 operations, 42 operations after cse', '\n')
Set up the energies
kin_energie = BODY[0].kinetic_energy(N) + BODY[1].kinetic_energy(N)
pot_energie = mR*g*yR + mW*g*me.dot(DmcW.pos_from(O), N.y)
spring_energie = 0.5 * kW * (qW - korrekt)**2 + 0.5 * kR * eindring**2
Convert the sympy functions into numpy functions.
qL = q_ind + u_ind
pL = [mR, mW, g, iZZR, iZZW, ro, d, kR, kW, reibung, max_kipp, korrekt]
combined = sm.lambdify(qL + pL, [MM, force, kin_energie, pot_energie,
spring_energie], cse=True)
energien = sm.lambdify(qL + pL, [kin_energie, pot_energie, spring_energie],
cse=True)
krafte_lam = sm.lambdify(qL + pL, krafte, cse=True)
Numerical Integration¶
Variables / starting coordinates
mR1 = 1.
mW1 = 15.
iZZR1 = 1.
iZZW1 = 10.
ro1 = 1.
d1 = 2.
g1 = 9.81
kR1 = 1.e6
kW1 = 2.e3
reibung1 = 0.75
max_kipp1 = 2. # in degrees. Will be converted to radians later
korrekt1 = 10. # in degrees. Just to make the woodpecker to swing more
# 'in the center'.
qR1 = 0
qW1 = -30 # in degrees. Will be converted to radians later
yR1 = 0.
uR1 = 0.
uW1 = 0.
uy1 = 0.
intervall = 30. # intervall in sec to be simulated
schritte = 500 # steps per sec to be returned
pL_vals = [mR1, mW1, g1, iZZR1, iZZW1, ro1, d1, kR1, kW1, reibung1,
np.deg2rad(max_kipp1), np.deg2rad(korrekt1)]
y0 = [qR1, np.deg2rad(qW1), yR1, uR1, uW1, uy1]
def gradient(t, y, args):
sol = np.linalg.solve(combined(*y, *args)[0], combined(*y, *args)[1])
return np.array(sol).T[0]
times = np.linspace(0., intervall, int(schritte*intervall))
t_span = (0., intervall)
resultat1 = solve_ivp(gradient, t_span, y0, t_eval=times, args=(pL_vals,))
resultat = resultat1.y.T
print('Shape of result: ', resultat.shape)
print(resultat1.message)
Shape of result: (15000, 6)
The solver successfully reached the end of the integration interval.

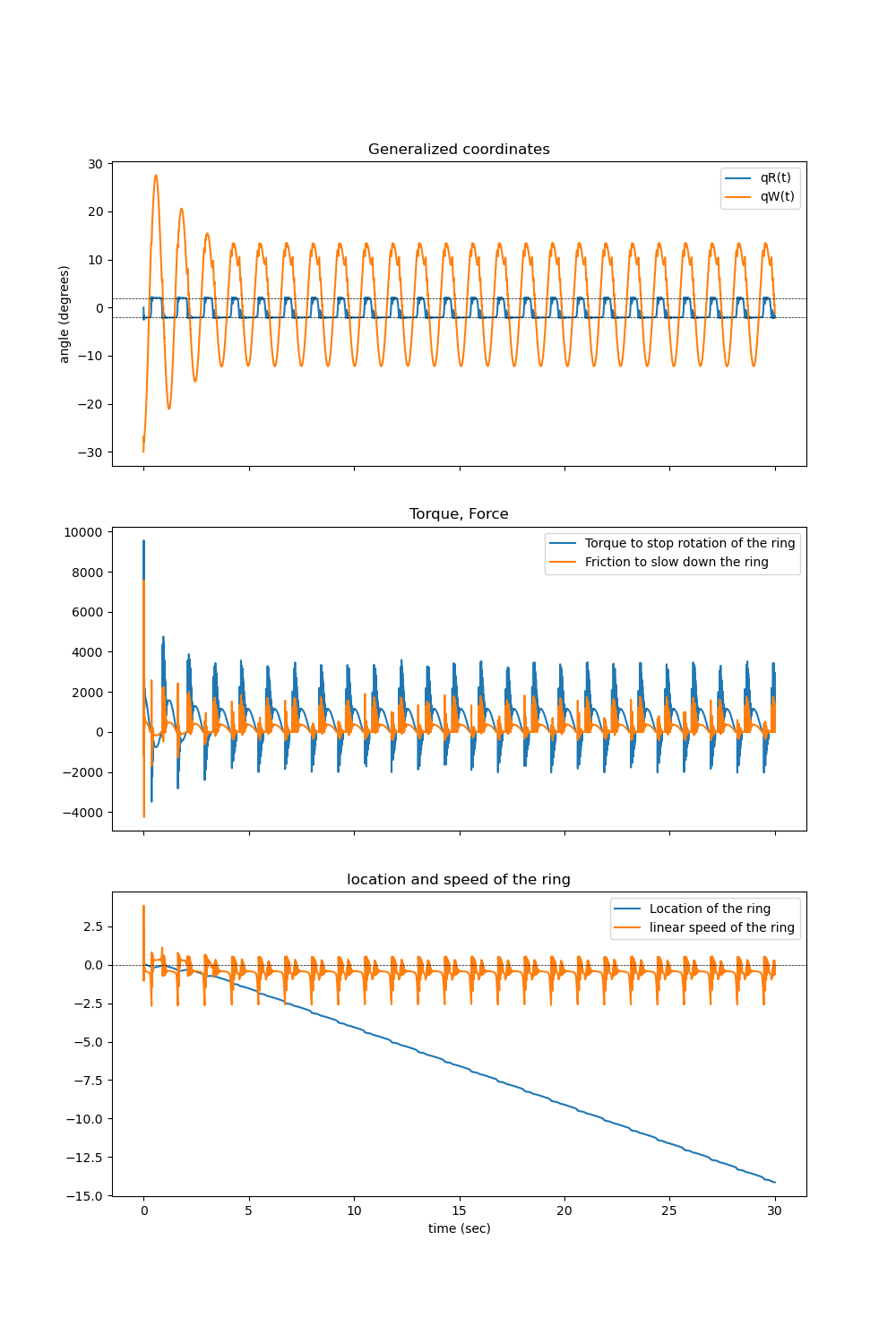

Animation¶
# reduce the number of points of time to around zeitpunkte
times2 = []
resultat2 = []
index2 = []
# =======================
zeitpunkte = 500
# =======================
reduction = max(1, int(len(times)/zeitpunkte))
for i in range(len(times)):
if i % reduction == 0:
times2.append(times[i])
resultat2. append(resultat[i])
schritte2 = len(times2)
print(f'animation used {schritte2} points in time')
resultat2 = np.array(resultat2)
times2 = np.array(times2)
# set up the ring, which is modelled as a rectangle of width = 2 * ro,
# and height = width / 5
# attachment point of the weoodpecker on the ring is point P
P_loc = [me.dot(P.pos_from(O), uv) for uv in (N.x, N.y)]
DmcW_loc = [me.dot(DmcW.pos_from(O), uv) for uv in (N.x, N.y)]
# set up the anchor point of the rectangle
P1, P2, P3 = sm.symbols('P1, P2, P3', cls=me.Point)
P1.set_pos(DmcR, -ro * AR.x - ro / 2.5 * AR.y)
P2.set_pos(DmcW, 2. * ro*AW.y) # head of woodpecker
P3.set_pos(P2, -d * AW.x) # end of beak
P1_loc = [me.dot(P1.pos_from(O), uv) for uv in (N.x, N.y)]
P2_loc = [me.dot(P2.pos_from(O), uv) for uv in (N.x, N.y)]
P3_loc = [me.dot(P3.pos_from(O), uv) for uv in (N.x, N.y)]
P_loc_lam = sm.lambdify(qL + pL, P_loc, cse=True)
P1_loc_lam = sm.lambdify(qL + pL, P1_loc, cse=True)
P2_loc_lam = sm.lambdify(qL + pL, P2_loc, cse=True)
P3_loc_lam = sm.lambdify(qL + pL, P3_loc, cse=True)
DmcW_loc_lam = sm.lambdify(qL + pL, DmcW_loc, cse=True)
P_x = np.array(P_loc_lam(*[resultat2[:, i] for i in range(resultat2.shape[1])],
*pL_vals)[0])
P_y = np.array(P_loc_lam(*[resultat2[:, i] for i in range(resultat2.shape[1])],
*pL_vals)[1])
P1_x = np.array(P1_loc_lam(*[resultat2[:, i]
for i in range(resultat2.shape[1])], *pL_vals)[0])
P1_y = np.array(P1_loc_lam(*[resultat2[:, i]
for i in range(resultat2.shape[1])], *pL_vals)[1])
P2_x = np.array(P2_loc_lam(*[resultat2[:, i]
for i in range(resultat2.shape[1])], *pL_vals)[0])
P2_y = np.array(P2_loc_lam(*[resultat2[:, i]
for i in range(resultat2.shape[1])], *pL_vals)[1])
P3_x = np.array(P3_loc_lam(*[resultat2[:, i]
for i in range(resultat2.shape[1])], *pL_vals)[0])
P3_y = np.array(P3_loc_lam(*[resultat2[:, i]
for i in range(resultat2.shape[1])], *pL_vals)[1])
DmcW_x = np.array(DmcW_loc_lam(*[resultat2[:, i]
for i in range(resultat2.shape[1])],
*pL_vals)[0])
DmcW_y = np.array(DmcW_loc_lam(*[resultat2[:, i]
for i in range(resultat2.shape[1])],
*pL_vals)[1])
DmcR_x = np.array([0. for _ in range(schritte2)])
DmcR_y = resultat2[:, 2]
# needed to give the picture the right size.
xmin = -ro1 - 1
xmax1 = np.max(DmcW_x)
xmax2 = np.max(DmcR_x)
xmax = max(xmax1, xmax2) + 2.
ymin1 = np.min(DmcW_y)
ymin2 = np.min(DmcR_y)
ymin = min(ymin1, ymin2) - 1
ymax1 = np.max(DmcW_y)
ymax2 = np.max(DmcR_y)
ymax = max(ymax1, ymax2) + 2
def init_plot():
fig, ax = plt.subplots(figsize=(10, 10), subplot_kw={'aspect': 'equal'})
ax.axis('on')
ax.set_xlim(xmin, xmax)
ax.set_ylim(ymin, ymax)
line01 = ax.axvline(-ro1/2., color='black')
line02 = ax.axvline(ro1/2, color='black')
line03 = ax.axvspan(-ro1/2., ro1/2, color='black', alpha=0.5)
line1, = ax.plot([], [], color='blue') # line connecting P to DmcW
# line connecting DmcW to P2
line2, = ax.plot([], [], color='green', marker='o', markersize=5)
# line connecting P2 to P3
line3, = ax.plot([], [], color='red', marker='o', markersize=5)
line4, = ax.plot([DmcW_x[0]], [DmcW_y[0]], color='green', marker='o',
ms=10)
line5, = ax.plot([P2_x[0]], [P2_y[0]], color='green', marker='o', ms=25)
line6, = ax.plot([P2_x[0]], [P2_y[0]], color='yellow', marker='o', ms=5)
ring = patches.Rectangle((P1_x[0], P1_y[0]), width=2.*ro1, height=2.*ro1/5,
angle=np.rad2deg(resultat2[0, 0]),
rotation_point='center', color='blue')
ax.add_patch(ring)
return (fig, ax, line01, line02, line03, line1, line2, line3, line4,
line5, line6, ring)
def animate(i):
message = (f'running time {times[i]:.2f}')
ax.set_title(message, fontsize=12)
ax.set_xlabel('X direction', fontsize=12)
ax.set_ylabel('Y direction', fontsize=12)
ring.set_xy((P1_x[i], P1_y[i]))
ring.set_angle(np.rad2deg(resultat2[i, 0]))
werte_x = [P_x[i], DmcW_x[i]]
werte_y = [P_y[i], DmcW_y[i]]
line1.set_data([werte_x, werte_y])
werte_x = [DmcW_x[i], P2_x[i]]
werte_y = [DmcW_y[i], P2_y[i]]
line2.set_data([werte_x, werte_y])
werte_x = [P2_x[i], P3_x[i]]
werte_y = [P2_y[i], P3_y[i]]
line3.set_data([werte_x, werte_y])
line4.set_data([[DmcW_x[i]], [DmcW_y[i]]])
line5.set_data([[P2_x[i]], [P2_y[i]]])
line6.set_data([[P2_x[i]], [P2_y[i]]])
animation used 500 points in time
Create the animation object.
(fig, ax, line01, line02, line03, line1, line2, line3, line4, line5,
line6, ring) = init_plot()
anim = animation.FuncAnimation(fig, animate, frames=schritte2,
interval=150*np.max(times2) / schritte2)
